PRODUCT INTRODUCTION

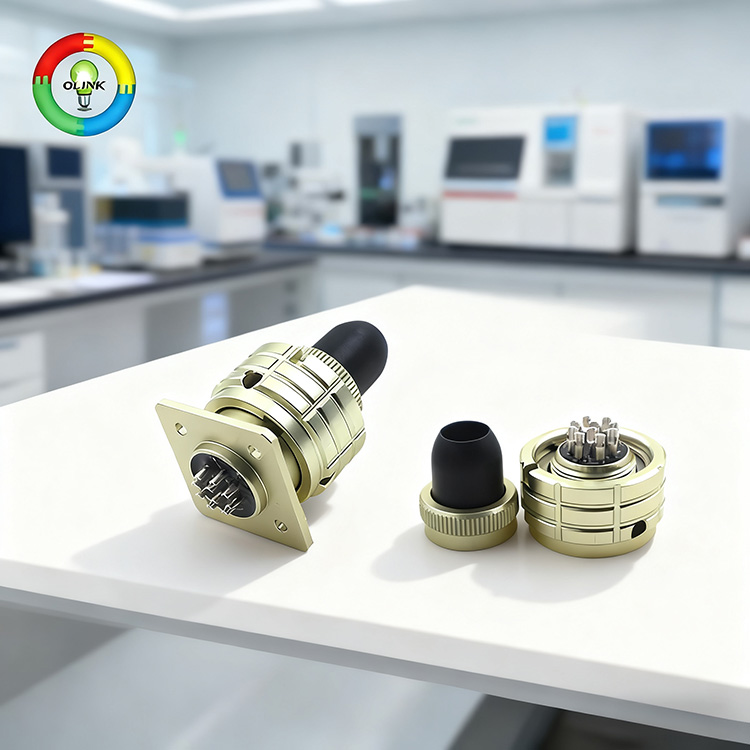

OHS Series Connector Was Developed According Tothe Russia Type Ohц-b C-1(2),Widely Used In Direct Current And Alrernate Currentcircuit,the Connect Way Is Bayonet ,Receptcle without Tail ,plug With Plastic Straight Tail.

PRODUCT PARAMETERS

Shell material	aluminum alloy	Connection type	Threaded connection
Wiring method	Welding	Working temperature	-60℃~+85℃
Rated voltage	250V	Contact Resistance	≤5mΩ
Vibration	1-5000Hz 20g	Insulation Resistance	≥1000MΩ
Shock	1000g (single times), 100g (multiple times	Contact Diameter	Φ1.0mm

OPERATING VOLTAGE AND CURRENT

Shell No.	Number of contacts	Working current(A)	Operating voltage(V)
10	4	3.7	250V
12	7	3.1	250V
14	10	3.0	250V
18	19	2.1	250V
22	32	1.8	250V
27	50	1.5	250V

Note: If You Need Detailed Size Drawings, Please Contact Our Customer Service Staff For Consultation, We Will Provide You With Professional Answers!
