Description

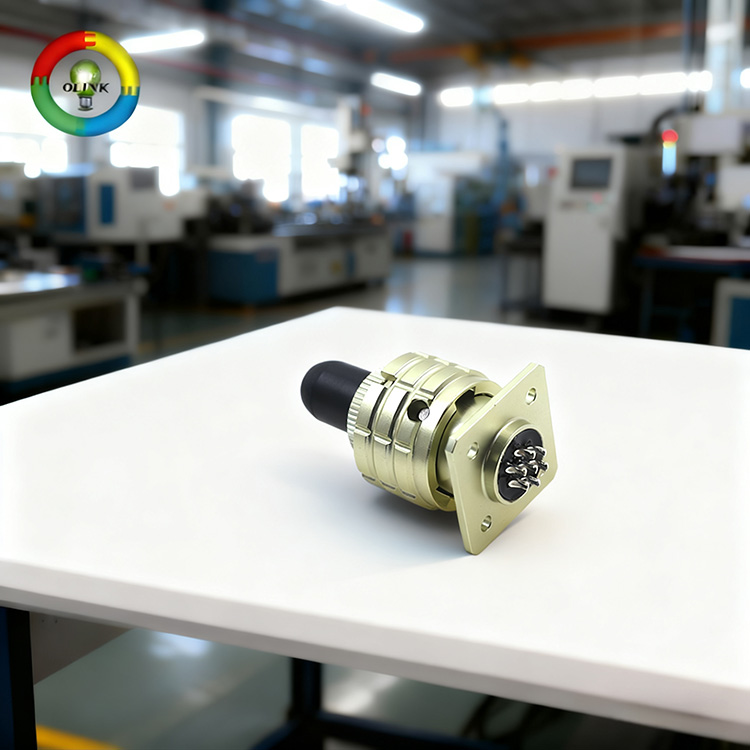

circular connectors Q series are made according to Electronic industrial Department standard SJ1744.Q14,Q18,Q24,Q30.

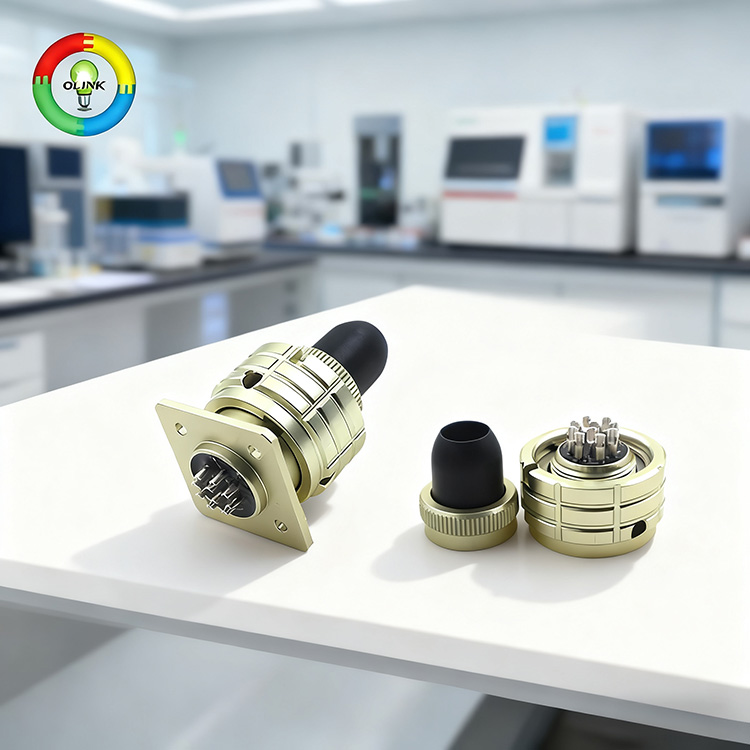

Circular connectors Q series are made according to Electronic industrial Department standard SJ1744.The wire of pin and socket use solder termination.The plug and receptacle can be mounted with pins or socket.These connectors are small, light,quickly mating and unmating,etc.They are widely used for the electrial connection between instruments,equipments.
Product Ordering
Q 14 J 5 A J
1 2 3 4 5 6
1. Name of series Q
2.Shell size : 14,18,24,30
3. J:Pin, K:Socket
4.Number of contacts:1,2,3,4,5,6,7,10,12,16,19,26,32,42,55
5. A:Receptacle,without A:Plug:P: cable shell.
6. J:Au-plated,without J:Ag-plated
Technical characteristics
|
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
|
-55°C~+100°C |
98% at40°C |
1KPa |
10~2000Hz,150m/s² |
500m/s² |
|
Current |
Voltage |
Contact resistance |
Endurance |
|
3-5A |
110-250 V |
≤8mΩ |
500cycles |
|
10A |
400V |
≤3 mΩ |
500cycles |
|
25A |
400V |
≤2mΩ |
500cycles |
|
40A |
400V |
≤1.5mΩ |
500cycles |
|
Environment |
Voltage proof |
Insulation resistance |
|
Normal |
1200V |
≥5000MΩ |
|
High temperature |
900V |
≥500MΩ |
|
Moisture |
500V |
≥50MΩ |
|
Low pressure |
200V |
- |
