ZLQ

Max. Current:2A/2.5A/3A/4A

Max. Voltage:6V/12V/24V/36V/48V/220V

Mechanical Life:500000 Times

Switch Combination:1NO1NC/2NO2NC

Head Type:Round Head/Flat Head/Dome Head

Illuminated Type:Ring llluminated/Dot lllum

IP level:IP67/IK10

LED:Yes

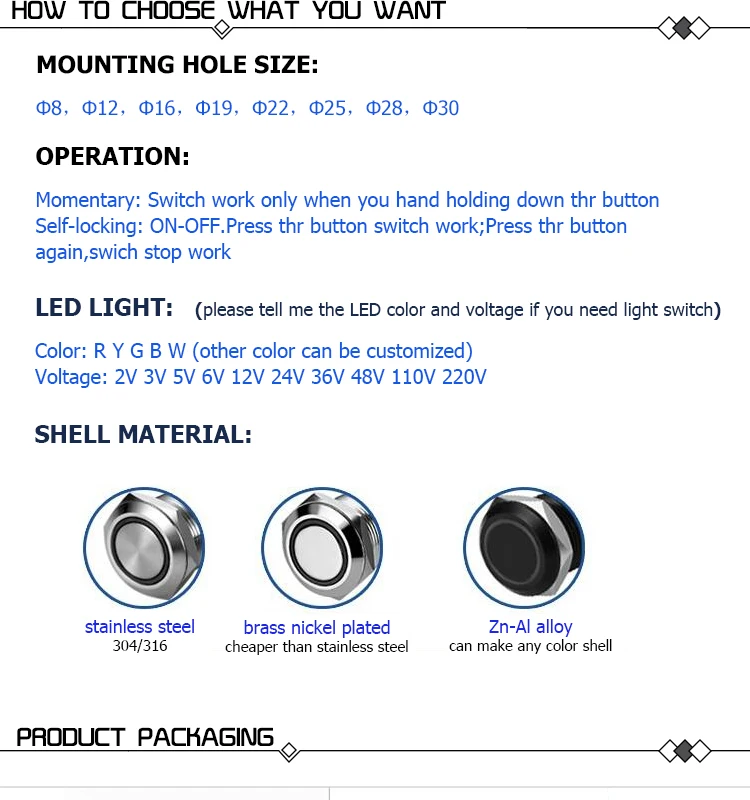

Material:Stainless Steel/Brass

Terminal Type:Pin Terminal

Product Parameters

Technical parameters
Project	Parameter	Project	Parameter
Switch type	Fast moving single contact	Explosion grade	IK10(for metal material)
LED type	Red，Green，Blue，Yellow，White，Orange，Purple	LED rated current	≤20mA
Contact resistance	≤50mΩ	Operating pressure	2.5~4.5N
Insulation resistance	≥100mΩ	Nut torque	5~14N.m
Insulation strength	2000VAC	Outer shell	Stainless/brass plating aluminium alloy oxide/plastic
Ambient temperature	-20℃~+55℃	Press key	Stainless/brass plating aluminium alloy oxide/plastic
Base seat	Engineering plastic	Touch point	Silver alloy
Operation schedule	Connected to about 2mm, head office about 3mm	Waterproof grade	IP67
Electrical life	≥50,000 times	Mechanical life	≥500,000 times

19QE
