Description

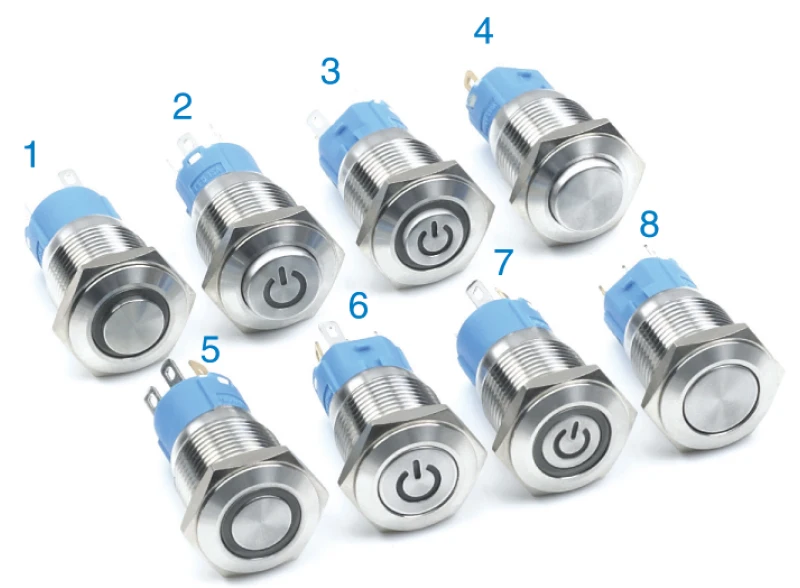

| NO. | ITEM NO. |
HEAD SHAPE |
SWITCH FUNCTION |
TERMINAL | LAMPTYPE | SHELL MATERIAL |
| 1 | 19QE-H11Z/E |
High Round |
1NO1NC/ 2NO2NC Momentary/ Self-locking |
J Pin Terminal | Ring |
Brass nickel plated Stainless steel |

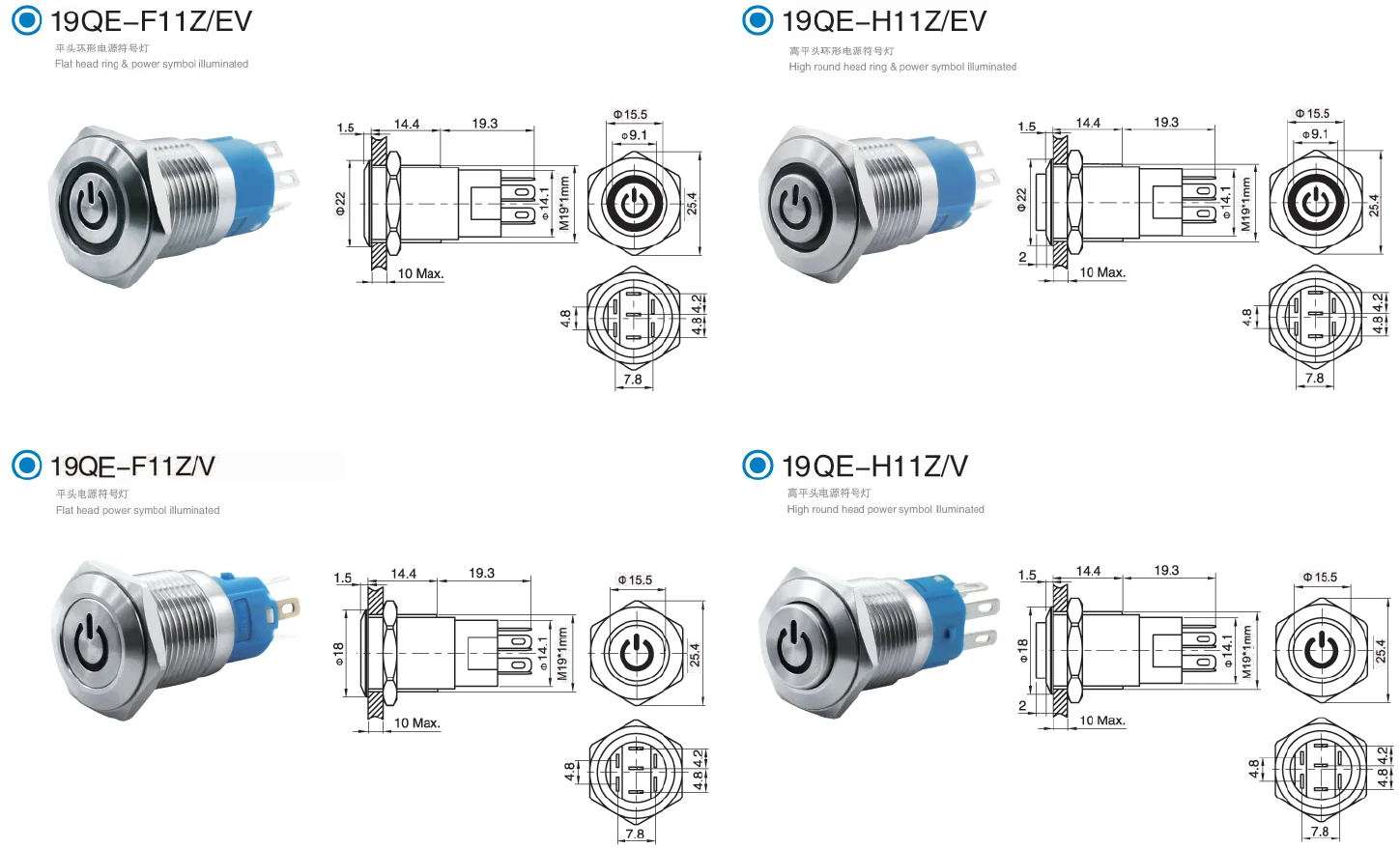

| 2 | 19QE-H11Z/V | High Round | J Pin Terminal | Power Symbol | ||
| 3 | 19QE-H11Z/EV | High Round | J Pin Terminal | Ring & Power Symbol | ||

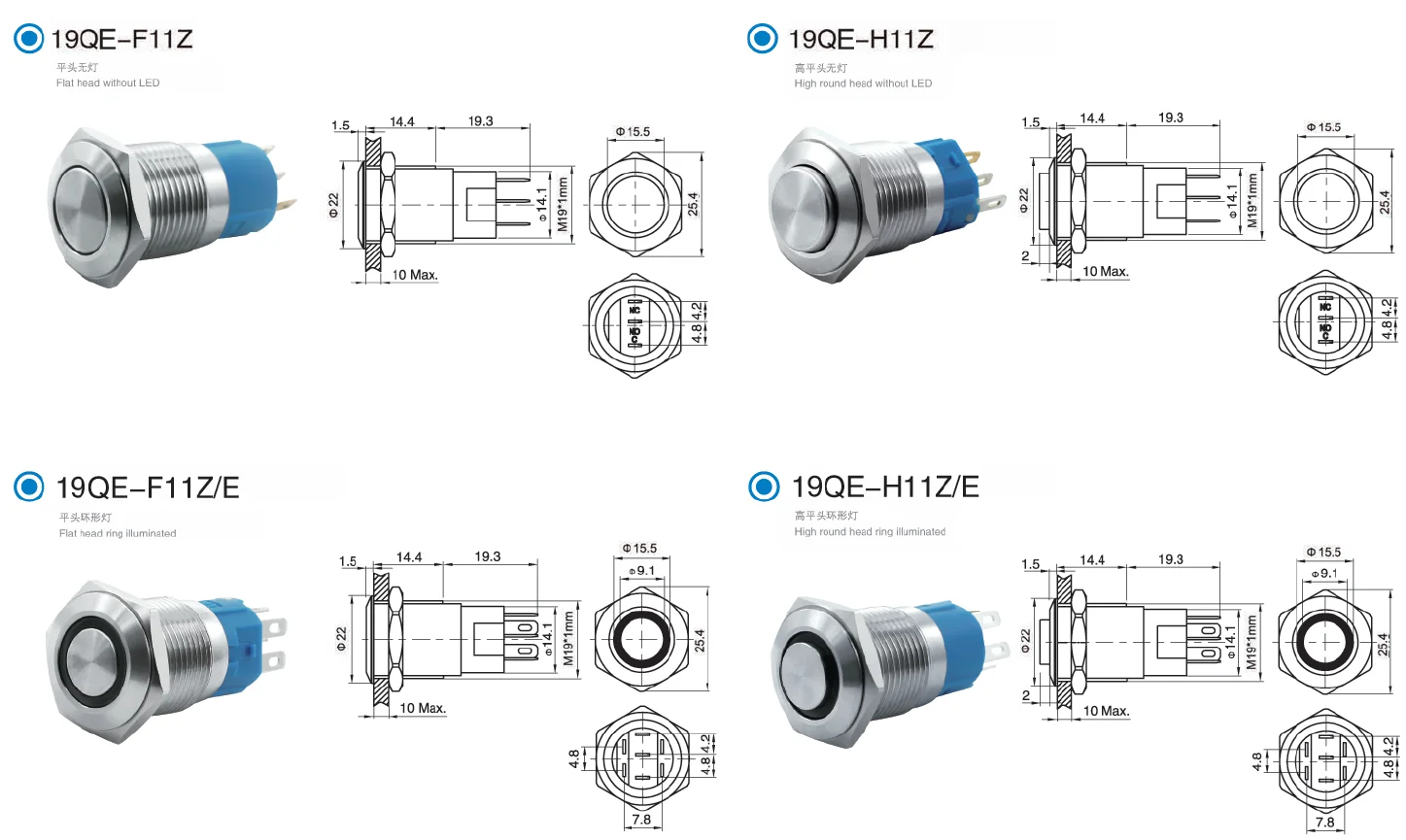

| 4 | 19QE-H11Z | High Round | J Pin Terminal | / | ||
| 5 | 19QE-F11Z/E | Flat | J Pin Terminal | Ring | ||
| 6 | 19QE-F11Z/V | Flat | J Pin Terminal | Power Symbol | ||
| 7 | 19QE-F11Z/EV | Flat | J Pin Terminal | Ring & Power Symbol | ||
| 8 | 19QB-F11Z | Flat | J Pin Terminal | / |
- Technical Parameters
| Terminal Type | J Pin Terminal | Protection Grade | IP65/IK10 | |
| Structure | 1NO | Material | Contact | Silver alloy |
| Specifications | 5A/250VAC | Button | Stainless steel | |
| Contact Resistance | ≤50mΩ |
Zn-Al alloy (Made to order any color) |
||
| Insulation Resistance | ≥1000MΩ | Body |
Brass nickel plated/ Stainless steel |
|
| Dielectric Strength | 2000VAC |
Zn-Al alloy (Made to order any color) |
||
| Environent Temperature | -20℃~+55℃ | Base | PBT | |
|
Lamp Parameters |
Rated | Red Orange yellow 2V | ||
| Mechanical Life | >1000000 times |
Rated Voltage |
2V,3V,5V,6V,12V,24V, 36V,48V,110V,220V |
|
| Electical Lifer | >50000 times | |||
| Panel Thickness | 1~10mm | Color |
Red,Orange,yellow, green,blue,White |
|
| Nut Torque | 5-14Nm | |||
| Operating Pressure | 3-5N | Life | 50000 Hours | |
| Operating Distance | About 3.0mm | |||
