Description

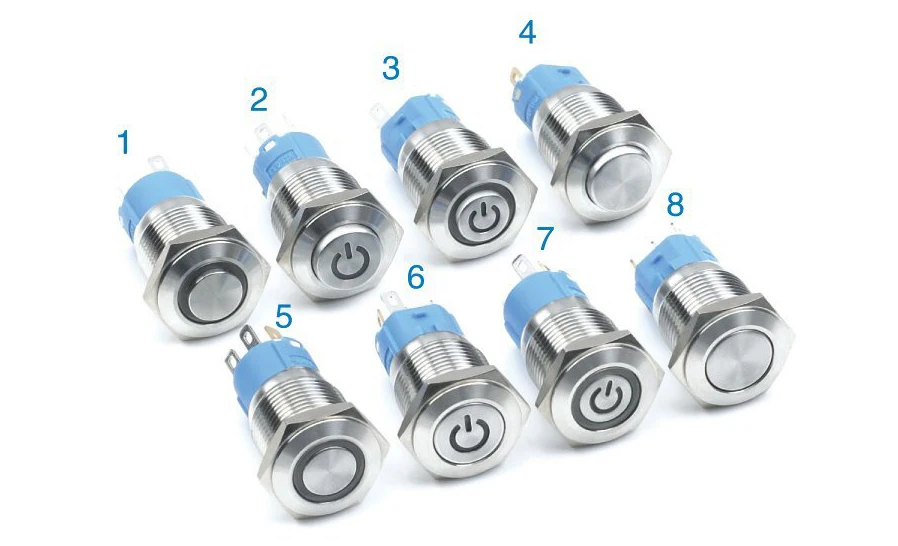

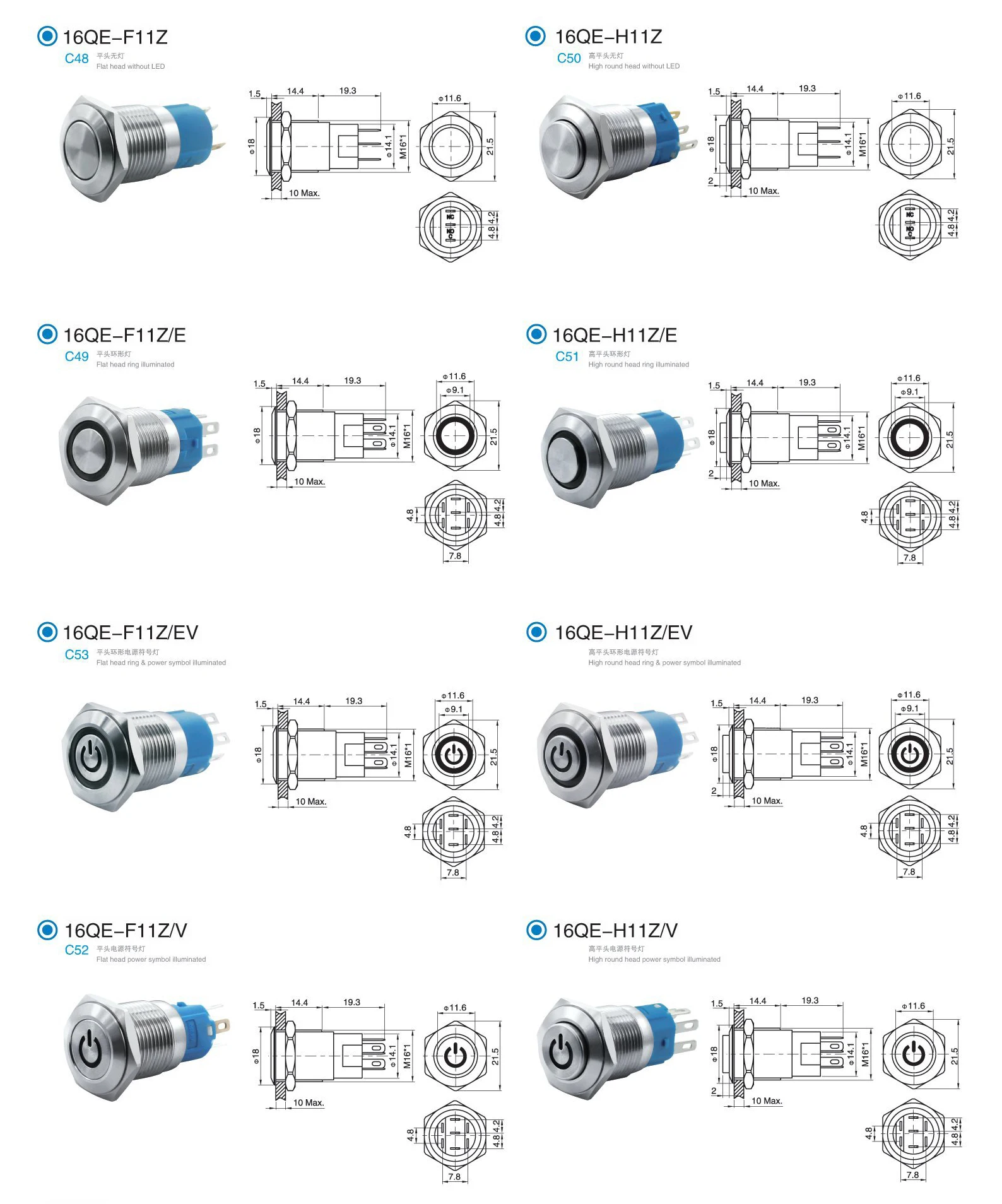

| NO. | ITEM NO. | HEAD SHAPE |
SWITCH FUNCTION |
TERMINAL | LAMP TYPE | SHELL MATERIAL |
| 1 | 16QE-H11Z/E | High Round |
1NO1NC
|
J Pin Terminal | Ring |
Brass Nickel Plated Stainless Steel |
| 2 |
16QE-H11Z/V |
High Round | J Pin Terminal | Power Symbol | ||
| 3 | 16QE-H11Z/EV | High Round | J Pin Terminal | Ring & Power Symbol | ||
| 4 | 16QE-H11Z | High Round | J Pin Terminal | / | ||
| 5 | 16QE-F11Z/E | Flat | J Pin Terminal | Ring | ||
| 6 | 16QE-F11Z/V | Flat | J Pin Terminal | Power Symbol | ||
| 7 | 16QE-F11Z/EV | Flat | J Pin Terminal | Ring & Power Symbol | ||
| 8 | 16QE-F11Z | Flat | J Pin Terminal | / |
- Technical Parameters
| Terminal Type | 2.8x0.5 J Pin Terminal | Protection Grade | IP65/IP67, IK10 | |
| Structure | 1NO1NC | Material | Contact | Silver alloy |
| Specifications | 5A/250VAC | Button | Stainless steel | |
| Contact Resistance | ≤50mΩ | Zn-Al alloy(Made to order any color) | ||
| Insulation Resistance | ≥1000MΩ | Body | Brass nickel plated/Stainless steel | |
| Dielectric Strength | 2000VAC | Zn-Al alloy(Made to order any color) | ||
| Environent Temperature | -20℃~+55℃ | Base | PBT | |
| Mechanical Life | >1000000 times |
Lamp Parameters |
Rated Voltage |
2V.3V.5V.6V.12V.24V.36V.48V.110V.220V |
| Electical Lifer | >50000 times | |||
| Panel Thickness | 1~10mm | |||
| Nut Torque | 5-14Nm | Color | Red, Orange, Yellow | |
| Operating Pressure | 3-5N | Green, Blue, WhiteDouble color led, three color led | ||
| Operating Distance | About 3mm | Life | 50000 Hours | |
