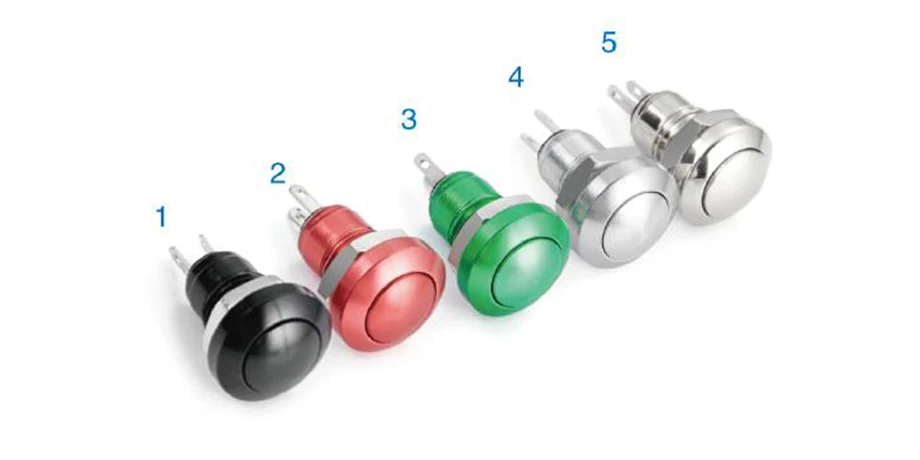

Description
| NO. | MODEL | ITEM NO. | HEAD SHAPE |
SWITCH FUNCTION |
TERMINAL | Color/Material |

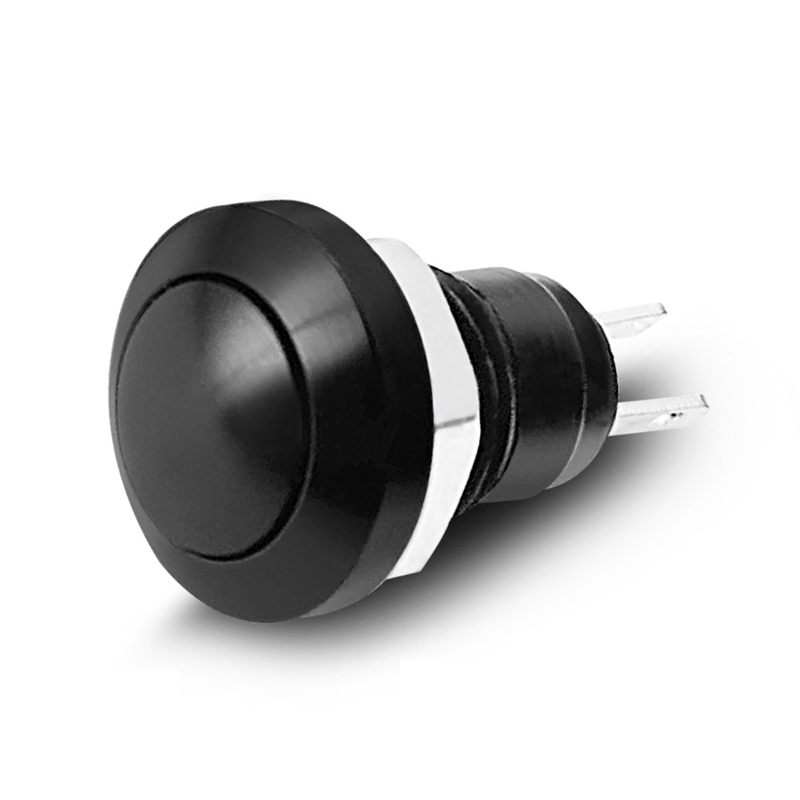

| 1 | B1 | 8QA-B10/A(N) | Ball |
1NO
|
J Pin Terminal |
Black Zn-Al alloy |
| 2 | B1 | 8QA-B10/A(R) |
J Pin Terminal |
Red Zn-Al alloy
|
||
| 3 | B1 | 8QA-B10/A(G) |
J Pin Terminal |
Green Zn-Al alloy | ||
| 4 | B1 | 8QA-B10/S |
J Pin Terminal |
Stainless steel | ||
| 5 | B1 | 8QA-B10/N |
J Pin Terminal |
Brass nickel plated |
- Technical Parameters
| Terminal Type | 1.5x0.5 J Pin Terminal | Protection Grade | IP65/IK08 | |
| Structure | 1NO | Material | Contact | Silver alloy |
| Specifications |
1A 24VDC |
Button | Stainless steel | |
| Contact Resistance | ≤50mΩ | Zn-Al alloy(Made to order any color) | ||
| Insulation Resistance | ≥1000MΩ | Body | Brass nickel plated/Stainless steel | |
| Dielectric Strength | 2000VAC | Zn-Al alloy(Made to order any color) | ||
| Environent Temperature | -20℃~+85℃ | Base | PBT | |
| Mechanical Life | >1000000 times | |||
| Electical Lifer | >200000 times | |||
| Panel Thickness | 1~4mm | |||
| Nut Torque | 5-14Nm | |||
| Operating Pressure | 3-5N | |||
| Operating Distance | About 1.2mm | |||
