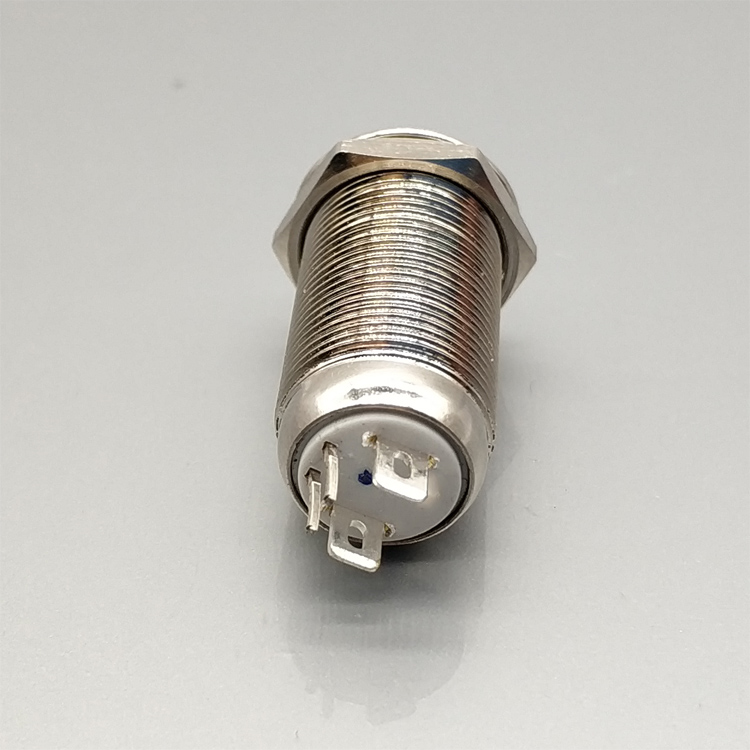

Description
| NO. | MODEL | ITEM NO. | HEAD SHAPE |
SWITCH FUNCTION |
TERMINAL | LAMP TYPE | SHELL MATERIAL |
| 1 | D11 | 12QC-H10Z/D | High Round |
1NO
Self-locking |
J Pin Terminal | Dot |
Brass nickel plated Stainless steel |
| 2 | D12 | 12QC-F10Z/D | Flat | Dot | |||
| 3 | D15 | 12QC-H10Z/E | High Round | Ring | |||
| 4 | D16 | 12QC-F10Z/E | Flat | Ring | |||
| 5 | D29 | 12QC-F10Z/V | Flat | symbol | |||
| 6 | D31 | 12QC-H10Z/V | High Round | symbol | |||
| 7 | D13 | 12QC-H10Z | High Round | ||||
| 8 | D14 | 12QC-F10Z | Flat |
- Technical Parameters
| Terminal Type | J Pinl Terminal | Protection Grade | IP65/IK08 | |
| Structure | 1NO | Material | Contact | Silver alloy |
| Specifications | 2A/36VDC 2A/250VAC | Button | Stainless steel | |
| Contact Resistance | ≤50mΩ | Zn-Al alloy(Made to order any color) | ||
| Insulation Resistance | ≥1000MΩ | Body | Brass nickel plated/Stainless steel | |
| Dielectric Strength | 2000VAC | Zn-Al alloy(Made to order any color) | ||
| Environent Temperature | -20℃~+55℃ | Base | PBT | |
| Mechanical Life | >1000000 times |
Lamp Parameters |
Rated Voltage |
Red Orange yellow 2V |
| Electical Lifer | >50000 times | green blue White 3V | ||
| Panel Thickness | 1~10mm | Other voltages require an external resistor | ||
| Nut Torque | 5-14Nm | Color | Red Orange yellow | |
| Operating Pressure | 3-5N | green blue White | ||
| Operating Distance | About 3.0mm | Life | 50000 Hours | |
