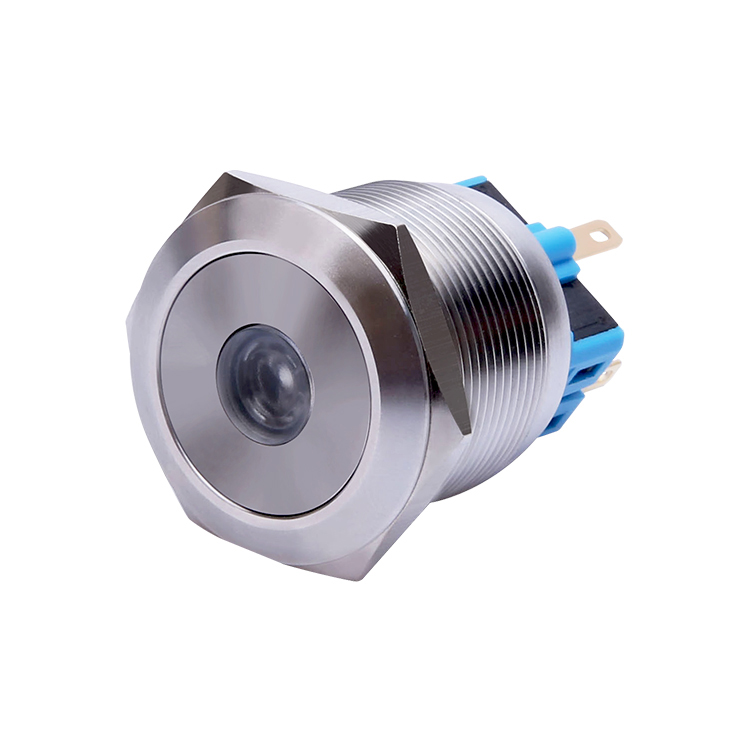

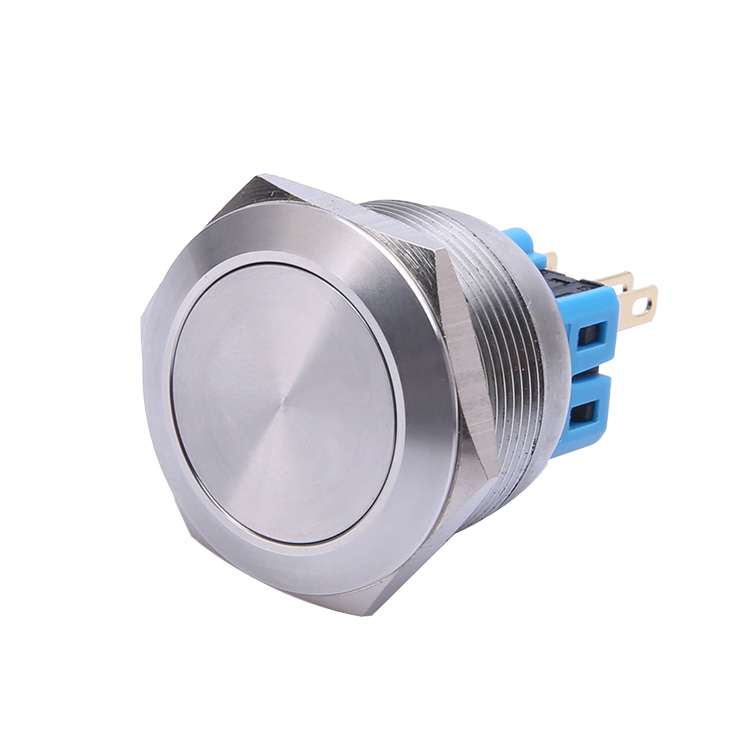

25QA

  • Rated Voltage:250V
  • Rated Current:5A
  • Protection Grade:IP65/IP67 IK10
  • Function:Momentary/Self-locking
  • Structure:1NO1NC/2NO2NC
  • Contact:Silver alloy/Stainless steel/Zn-Al
  • Terminal Type:J pin Terminal
  • Mounting hole diameter:16/19/22/25/28/30mm
  • Contact Resistance:≤50mΩ
  • Dielectric Strength:2000VAC
  • Category：Metal Switch
    • Inquiry

    Description

    Sealed Vandal Resistant Switch with Metal Dome Push Button

    • Technical Parameters
    Terminal Type J Pin Terminal Protection Grade IP65/IP67 IK10
    Structure 1NO1NC/2NO2NC Material Contact Silver alloy
    Specifications 5A/250VAC Button Stainless steel
    Contact Resistance ≤50mΩ Zn-Al alloy
    (Made to order any color)
    Insulation Resistance ≥1000MΩ Body Stainless steel
    Dielectric Strength 2000VAC Zn-Al alloy
    (Made to order any color)
    Environent Temperature -20°C~+55°C Base PBT
    Lamp
    Parameters     		Rated
    Voltage     		2V,3V,5V,6V,12V,24V
    36V,48V,110V,220V
    Mechanical Life >1000000 times
    Electical Lifer >200000 times
    Panel Thickness 1~6mm Color Red,Orange,yellow,
    green,blue,White
    Nut Torque 5-14Nm
    Operating Pressure 5~6N Life 50000 Hours
    Operating Distance About 2.8mm

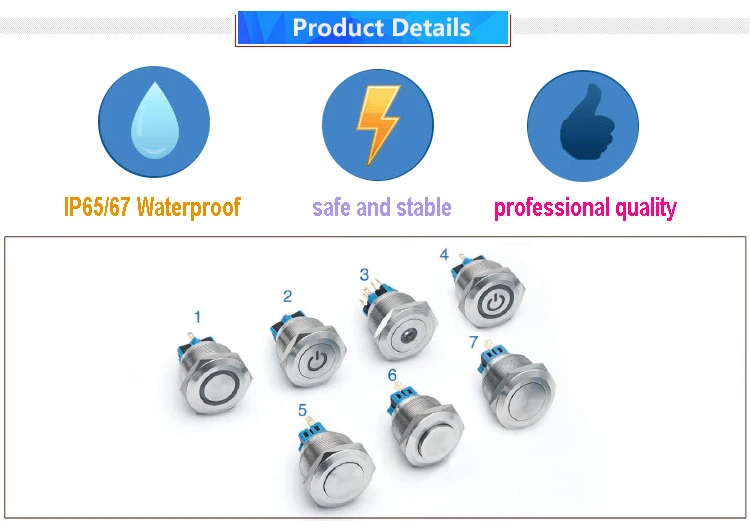

    Sealed Vandal Resistant Switch with Metal Dome Push Button

    Sealed Vandal Resistant Switch with Metal Dome Push ButtonSealed Vandal Resistant Switch with Metal Dome Push Button
