Description
- Xiamen Olink Imp&Exp is professional in ELECTRONIC 15 years, with good quality and short lead time.
- Our company occupies nearly 10,000 sq. meters and the area of the workshop is 30,000 sq. meters.
- There are more than 500 employees including 60 technicians.
- We have the three main series of the products containing electronic connectors, terminal blocks, wire harness and switches up to 200 types and 2000 specs.

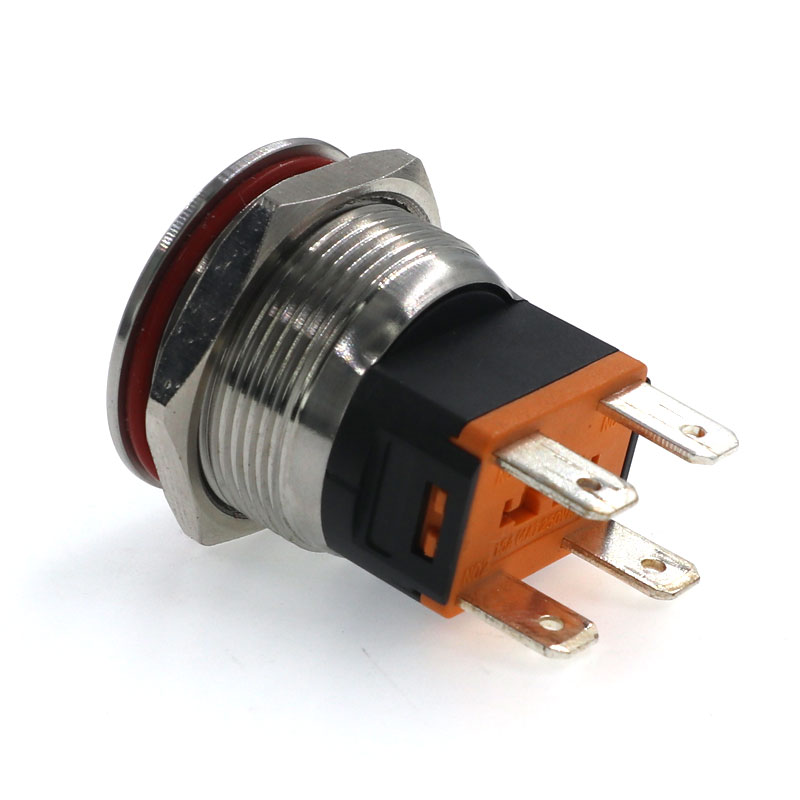

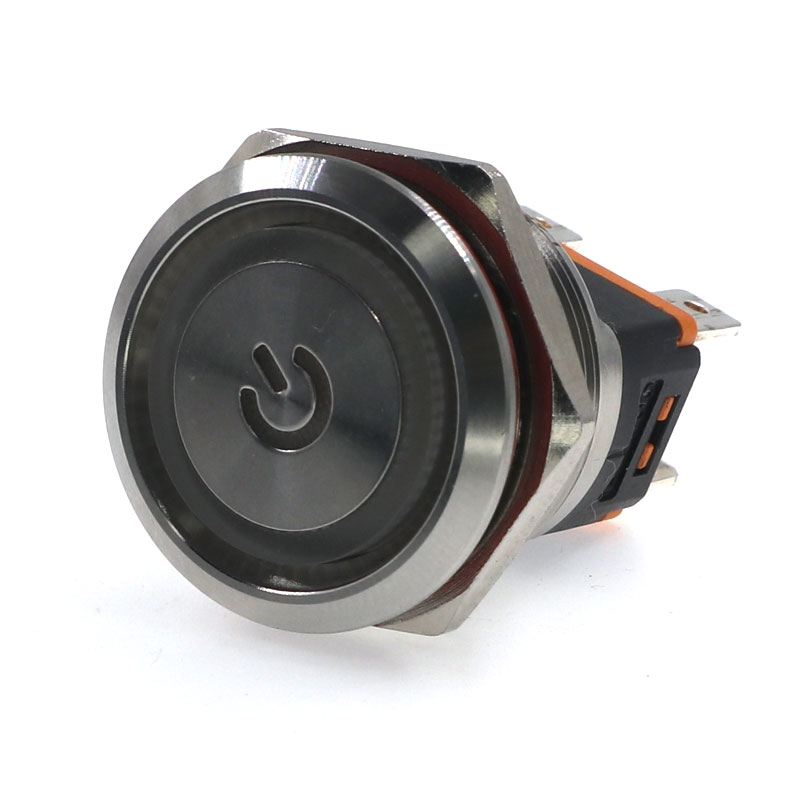

Description of 22mm Pushbutton
Silver contacts, 15A high current, double pole single throw, "+" and "-" poles are controlled at the same time during operation, IP67 Waterproof ,different colors of indicator lights can be selected, and special sockets for switches can be selected.
Features of IP67 push button switch:
Stable structure: 2000V withstand voltage test without leakage, smooth hand feeling
Exquisite appearance: 304 stainless steel, exquisite appearance, high-end atmosphere and high-grade

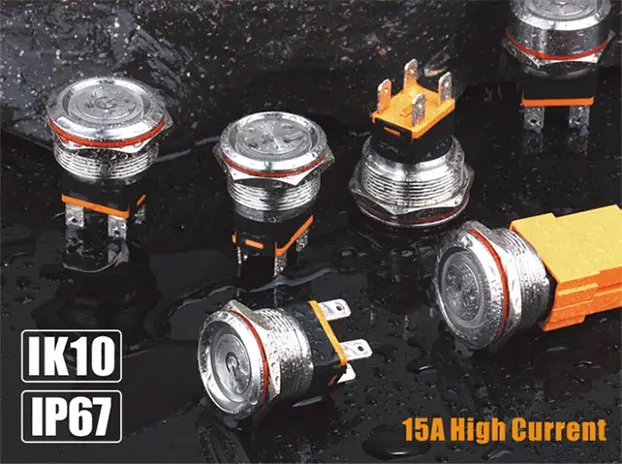

Dust-proof and water-proof: Water-proof silicone is installed inside the product, which is safe and environmentally friendly, waterproof and dustproof

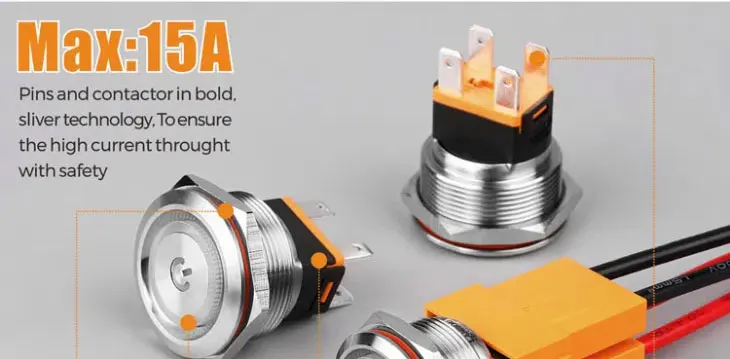

Superior performance: super large silver alloy contacts. 1 million times long mechanical life
Specifications:
| Product Name: |
22mm High Current metal push button switch |
Product Model: | 22C |
| Switch Rating: | DC12V/18A,DC24V/15A,AC250V/15A | Terminal Type: | J pin terminal |
| Switch Function: | 2NO, Momentary/Self-locking | Environment Temperature: | -20℃~+55℃ |
| Contact Resistance: | ≤50 mΩ | Insulation Resistance: | ≥1000 MΩ |
| Panel Thickness: | ≤4 mm | Protection Grade: | IP67, IK10 |
| Contact Material: |
Environment-friendly Silver Contact |
Button Material: | Stainless steel |
| Body Material: | Stainless steel | Base Material: | PA66 |
| Lamp Voltage: | 2V, 3V, 6V, 12V, 24V, 36V,110V, 220V, 250V | Lamp color: | Red, White, Blue, Green, Yellow |

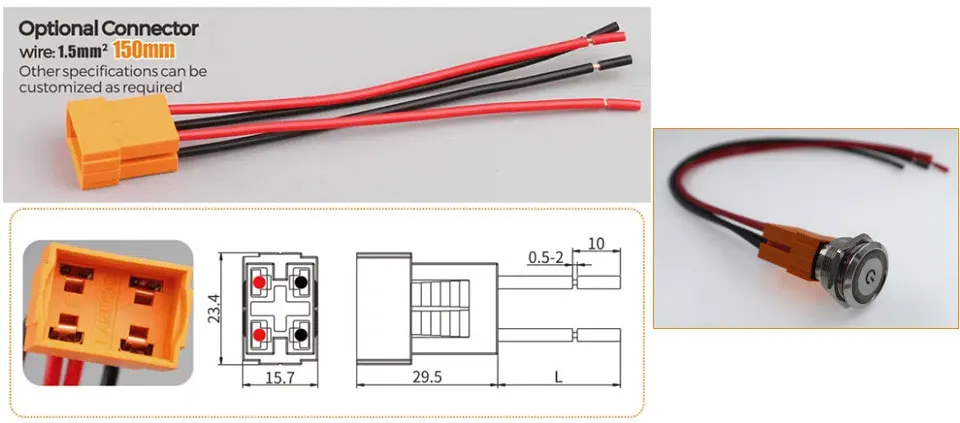

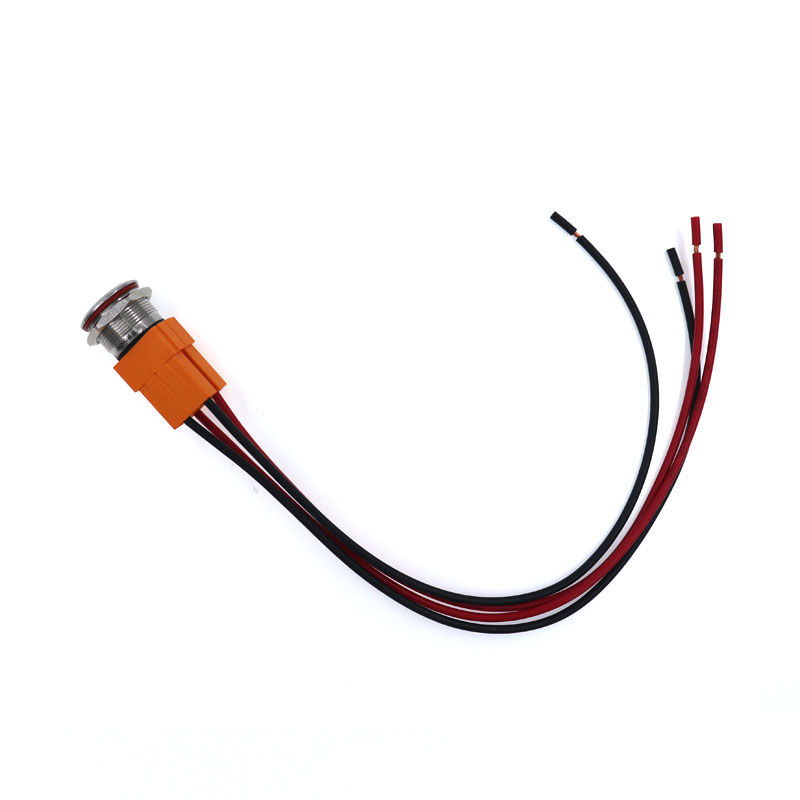

22C Push button Optional Accessories:
Applications: Car modification, battery car modification, computer modification, access control switch, home appliance button, industrial control instrument
Q:Why choose us?
A:1.100% home made,competitive price and fast delivery.
2.strict quality control.Certified by ISO9001:2000/ELT/TUV/CE/PSE/CQC/ROHS/UL.
Q:How long is your delivery time?
A:Sample is 1-3 days;Mass products is 5-7 days.
Q:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment?
A:We accept Multiple payment methods such us T/T in advance,Paypal,Western Union,Alitrade assurance and so on.
Q:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
